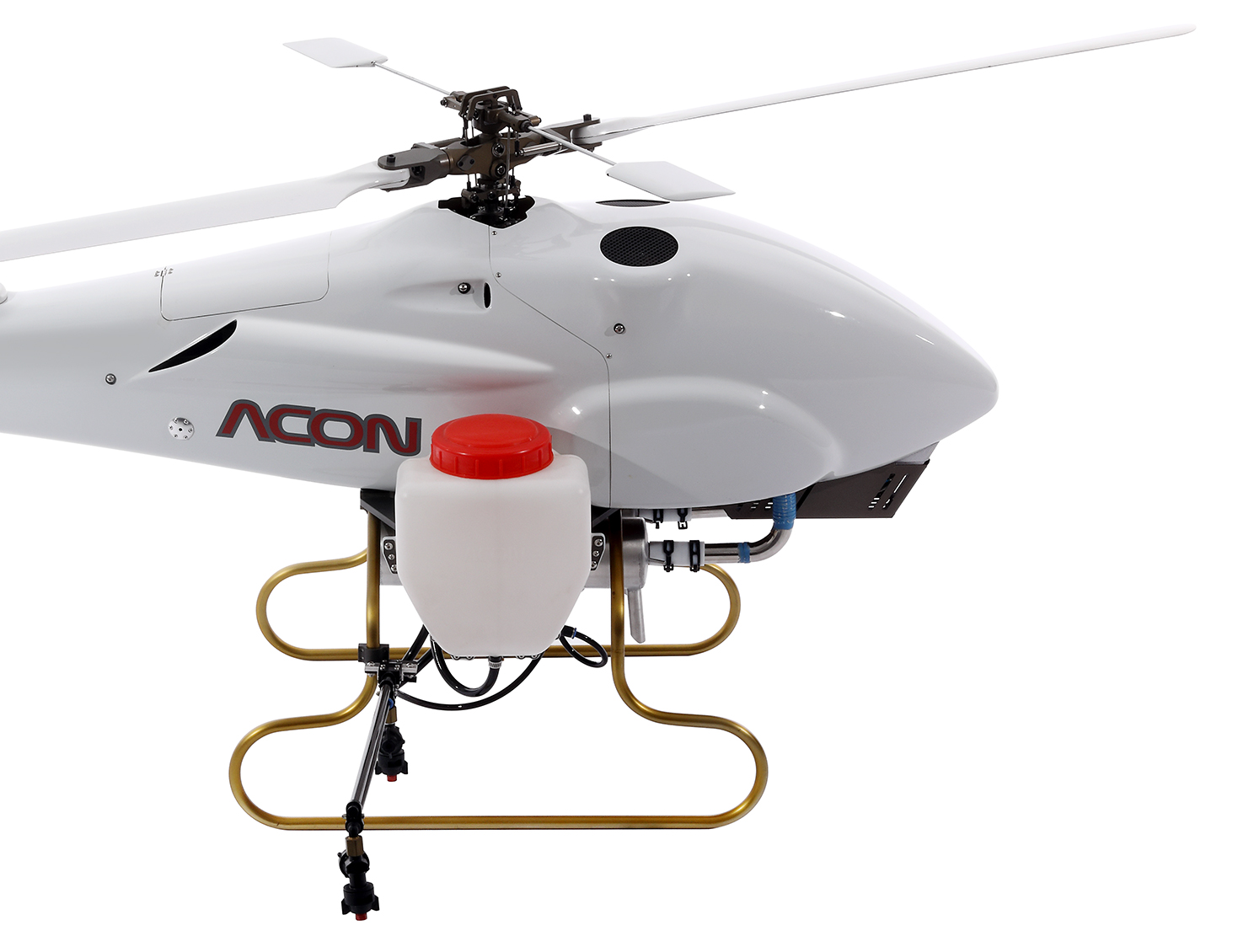

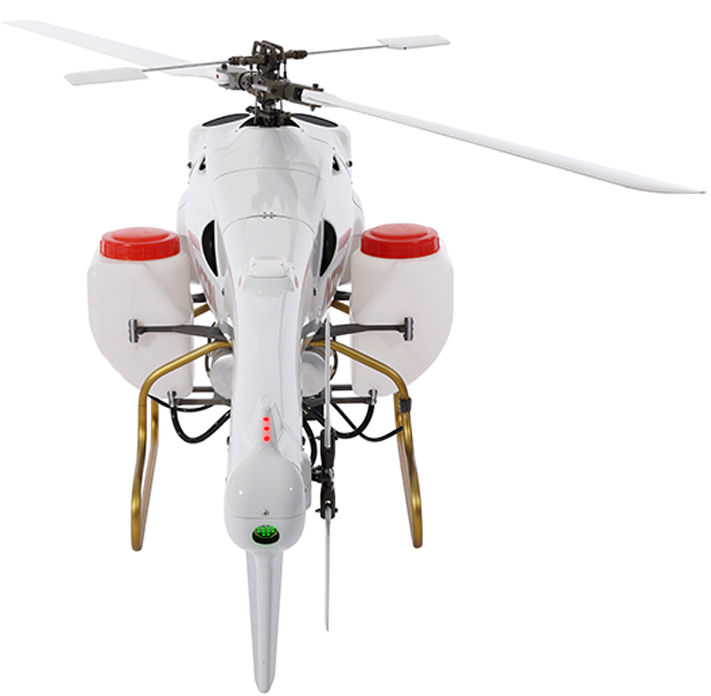

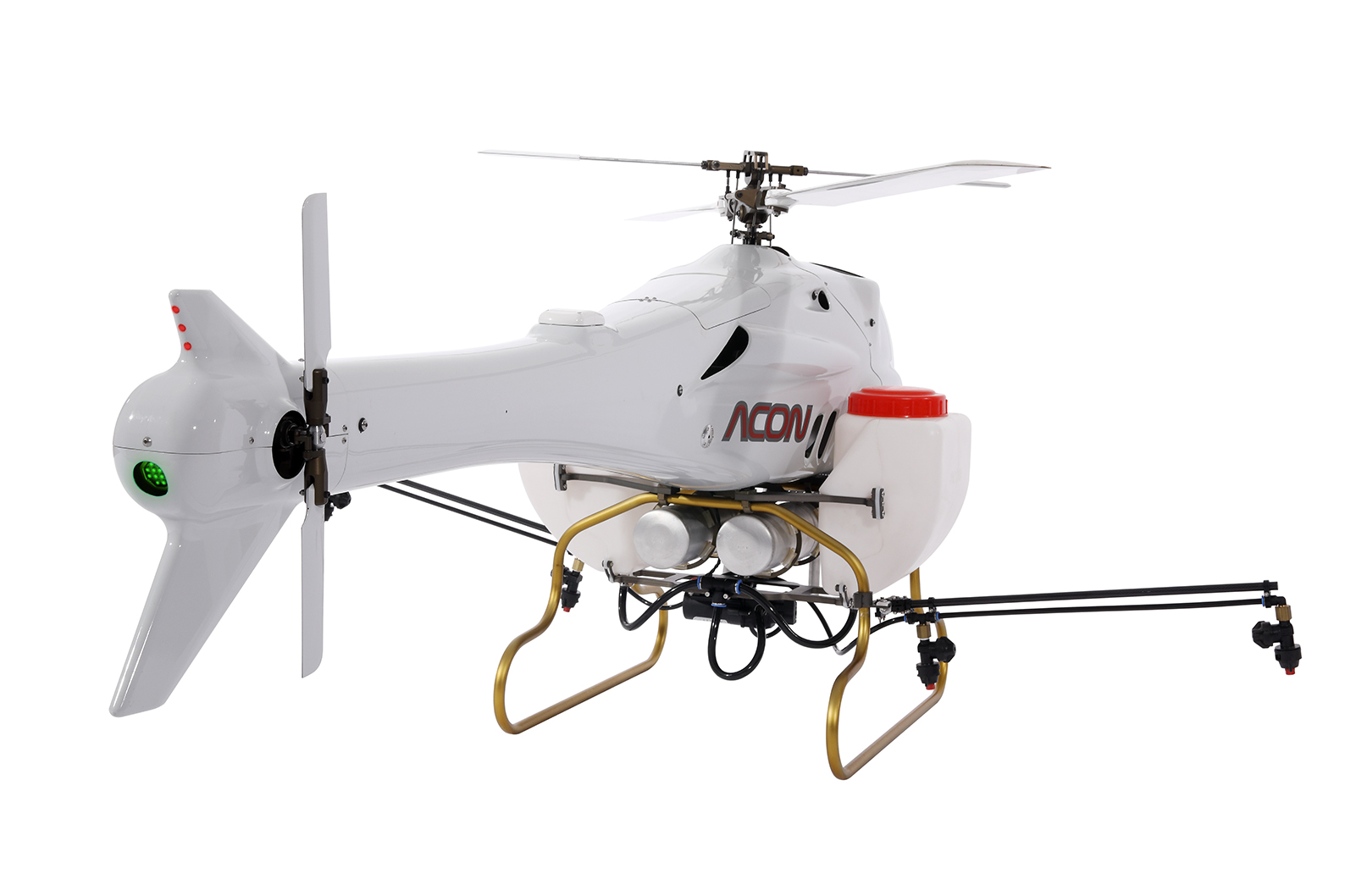

ACON-H

Overview

Pesticide using UAV has been used for more than 20 years and the benefits have been proved in many farming fields.
Comparing with pesticide by vehicle the chemical amount has decreased by 5~6 times and due to the fast pesticide control which made possible to cover larger area by ACON-H, the secondary infection can be also prevented. Therefore, it minimize soil contamination using less chemical. Also with UAV pesticide control, it is proved that the damage by disease has significantly decreased after using UAV for pesticide.
To get more information, please check our blog page with documents that includes all necessary comparison data

Main Feature

  • 1.Using Air Material (AL7075 / Carbon Fiber / Glass Fiber)

    Increase durability
  • 2.All Parts are equipped with “Grade A” quality products.

    Bearing : Made in Japan (Grade A parts) Bolts : “Unbrako” products.
  • 3.Equipped with Engine Cooling Cover

    Strengthen cooling system for engine
Performance Commercial Payload 20kg
Flight Time 40 minutes
Max. Payload 25kg
Body Length 2,025mm
Width 752mm
Height 816mm
Rotor Diameter 2,120mm
Engine Type Turbo Air cooling type two stroke two cylinder Horizontal
Displacement 157cc
Max. HP 17.5hp
Fuel Gasoline : Engine Oil Mix (50:1)
Engine Load Capacity 16L
Required Flying Speed 15~20km/h
Spray area 2ha
Spray time 10~12 minutes
Spray Range 6~7m
